Lawn Tractor Drive V-Belt Type 2 13.00 x 889.80 Li Compatible With Viking Honda John Deere ETC
Ratioparts

Lawn Tractor Drive V-Belt Type 2 13.00 x 889.80 Li Compatible With Viking Honda John Deere ETC

SKU: 248-037
Sale price£16.99

This belt is suitable for the following machines
  • ALPINA Lawn Tractors: A-72 G, AT3-72, ONE 72Y
  • CASTEL GARDEN Lawn Tractors: 72-11 G, F72, F72
  • HONDA Lawn Tractor: HF1211 S
  • ISEKI Lawn Tractors: FL105, FL115, FL2125
  • JOHN DEERE Lawn Tractors: CR125, CR125 5-Gang
  • SABO Lawn Tractor: 72-11 G
  • SOLO Lawn Tractor: 555
  • VIKING Lawn Tractors: MR340, MR345, MR380, MR385

Spec

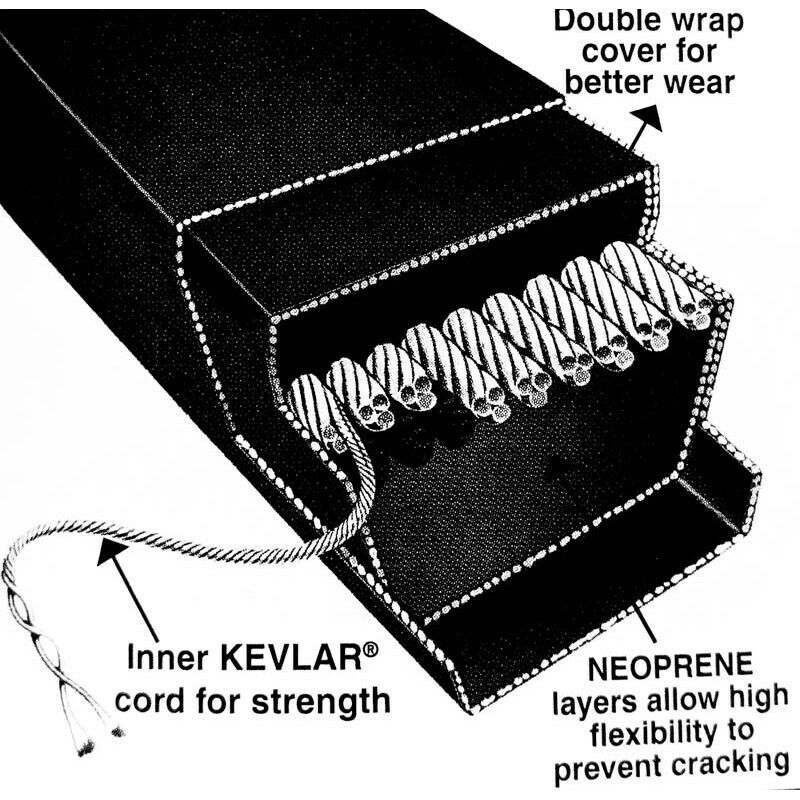

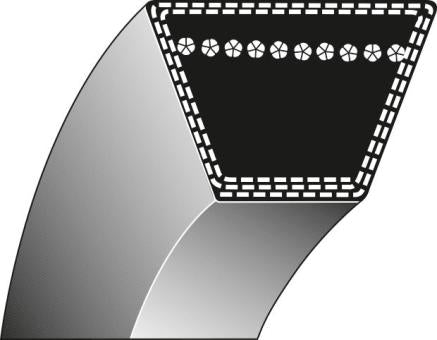

  • Belt design - V-belt Type 2
  • Belt profile - AX
  • Brand - RATIOPARTS
  • DIN / ISO - 2215 / 4184
  • Inner length approx. in mm - 845mm
  • Length ISO Ld/ Lw/ Lp approx. in mm - 872mm
  • Outer length approx. in mm - 890mm
  • The top width of the belt is approx. in mm - 13mm
This belt can also replace the following OEM part numbers
  • Allis Chalmers 176917, 2026270, 2029829
  • Ariens 07206100, 07206700, 07207200, 07210500
  • AYP 4897H, 4897H1, 634A563, 76672, 8225R, TH4A370, TH4H370
  • Bobcat 128005, 65082
  • Bunton L20, PL0020
  • Craftsman 0037X6MA, 037X51MA, 20715, 20716, 28594, 37X5, 37X6, 40899, 4897H, 4897H1, 49570, 49570MA, 50272, 51304, 51304MA, 634A563, 754-0154, 754-0255, 8225R, 954-0177, 954-0255, STD324370, TH4H370
  • Cub Cadet 487994-R1, 754-0154, 954-0154, 954-0156, IH-487994-R1
  • Dayco L437
  • Exmark 1-213077
  • Ford/New Holland 16366
  • Gates 6837
  • Goodyear 84370
  • Grasshopper 382627
  • Hayter 4491
  • Homelite 176917, 66818
  • Honda 76184-772-701, CG35061400H0
  • Jacobsen 551776
  • John Deere SB35061400
  • Lawn-Boy 103324, 103335, 16366, 45589
  • Mountfield R37X7
  • MTD 1651-68, 1651-85, 754-0102, 754-0154, 754-0225, 754-0255, 954-0154, 954-0255
  • Murray 037X51MA, 10716, 20715, 20716, 28594, 31X5, 31X5MA, 37X5, 37X51, 37X51MA, 37X6, 37X6MA, 40899, 45919, 48570, 49450, 49570, 49570MA, 89616
  • Parker 68138A, 7701A
  • Ref No A35
  • Simplicity 108059, 108059SM, 121228, 121228SM, 1608960, 1608960SM, 1674312, 1674312SM, 176917, 176917SM, 2176917, 2176917SM, 76085, 76085SM
  • Snapper 1-2020, 1-2249, 1674312, 1674312SM, 7012249, 7076085, 7076085YP, 7-6085
  • Steine r81A035
  • Toro 104496, 12-1228, 1552, 2-7173, 271-73, 271-95, 43-1030
  • Troy-Bilt 1108470, 1705326, 1724072, 1725407, 1729626, 1739945, 1813220, 18183220
  • White 32-0041327
  • Yazoo 1307, 205-037, 205-307
Download Product Manual
