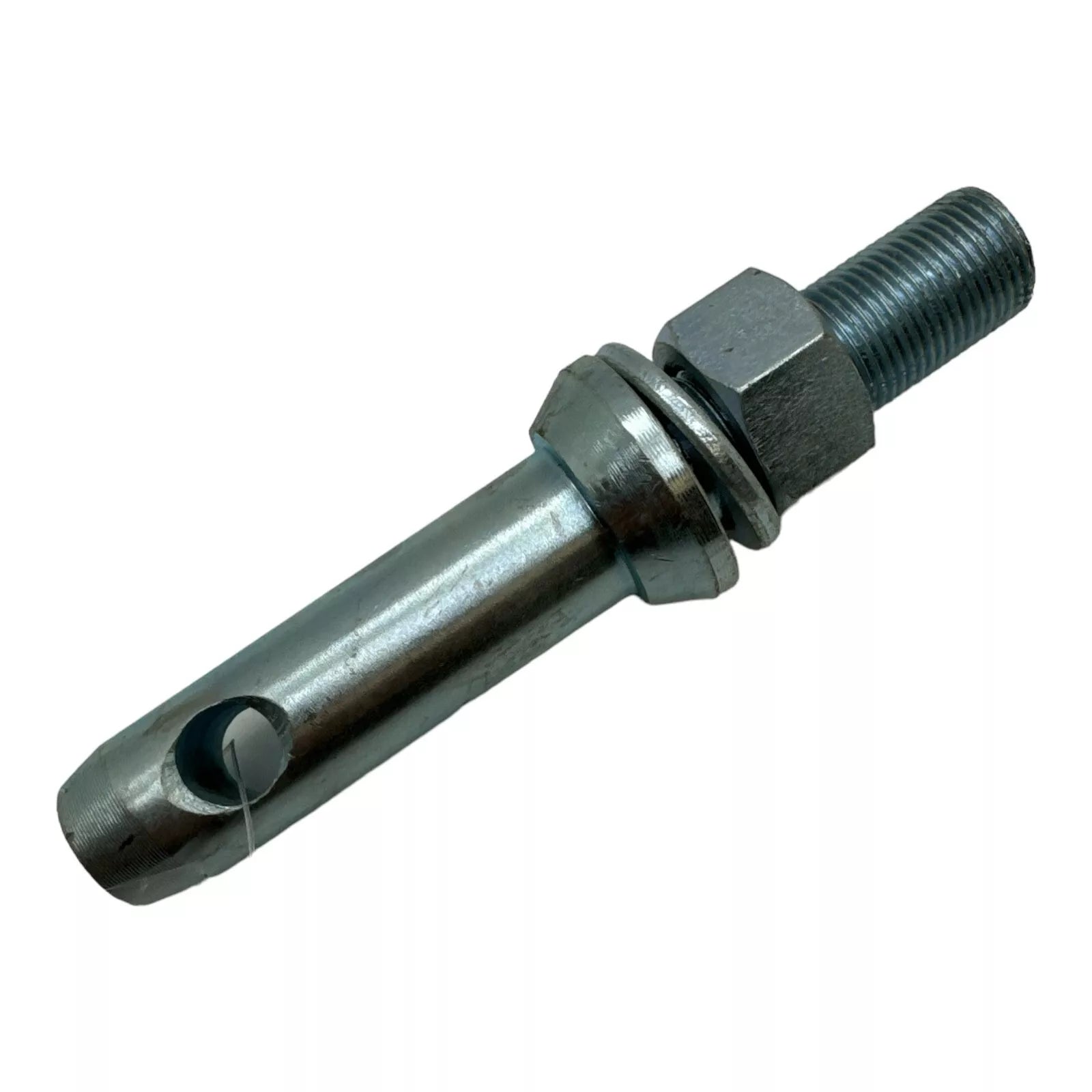

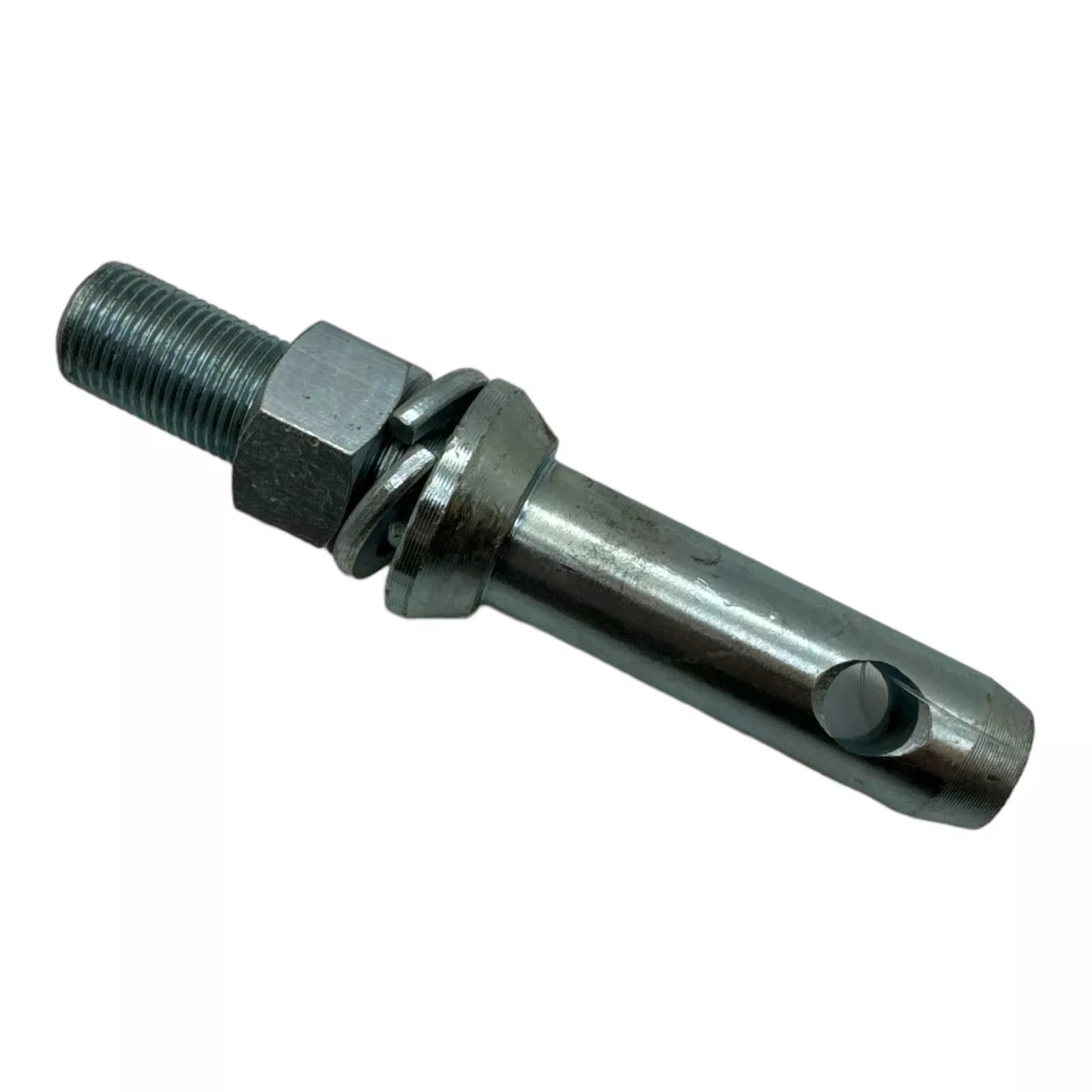

Tractor Lower Link Pin 22x137mm Thread 3/4" x 48mm Cat 1 Implement Mounting Pin
This is a Lower Link Implement Pin, it come zinc plated for a longer lasting finish

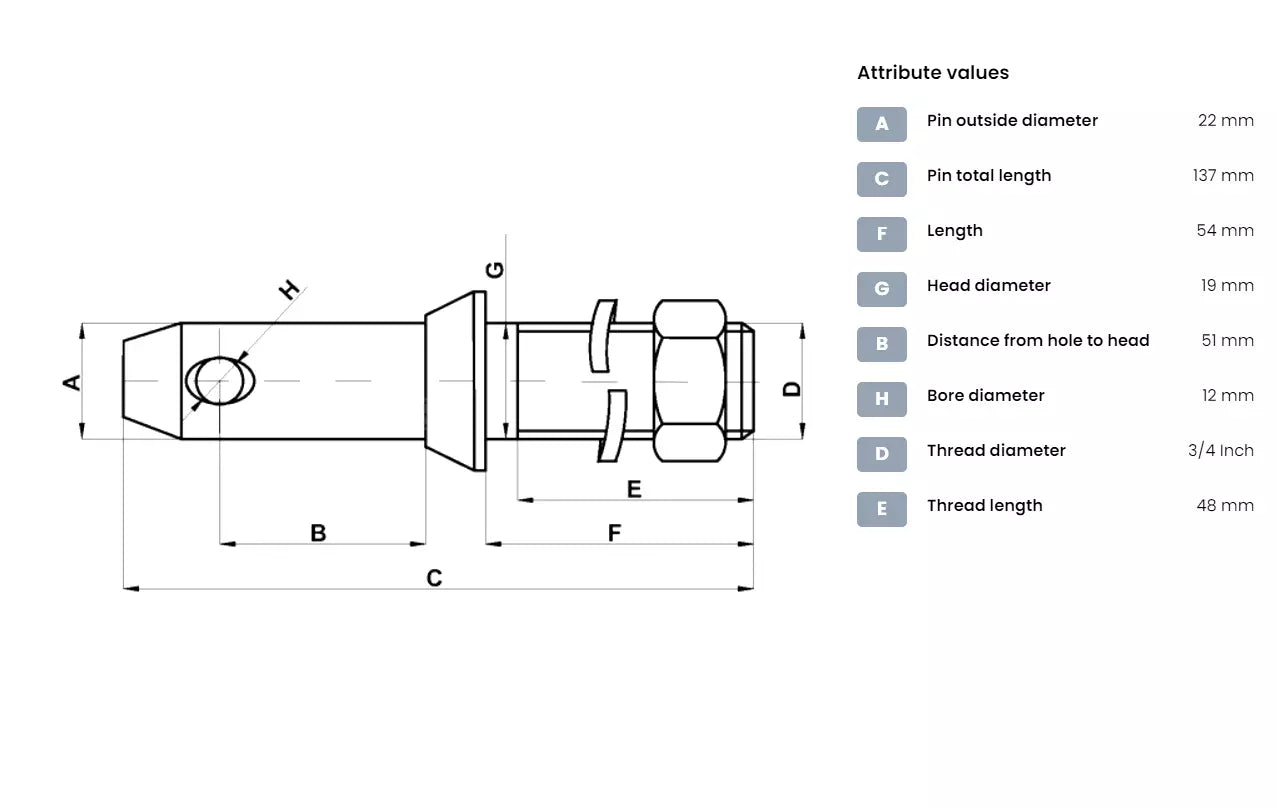

Spec
-
Pin outside diameter - 22mm
- Category - 1
- Pin total length - 137mm
- Length - 54mm
- Head diameter - 19mm
- Distance from hole to head - 51mm
- Bore diameter - 12mm
- Thread type - UNF
- Thread diameter - 3/4 Inch
- Thread length - 48 mm
